Original price was: 26,500.00৳ .21,500.00৳ Current price is: 21,500.00৳ .
| General Specifications | |
|---|---|

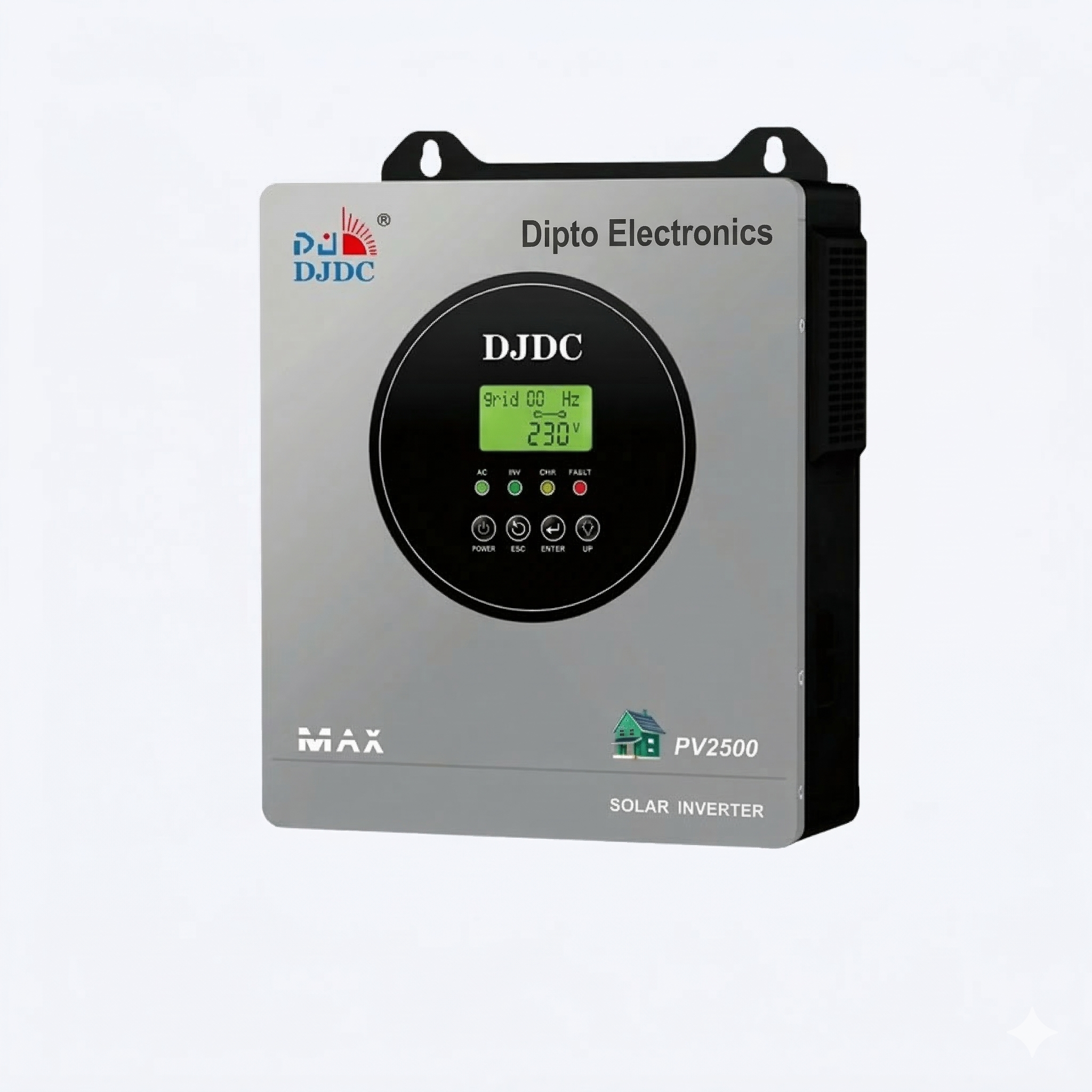

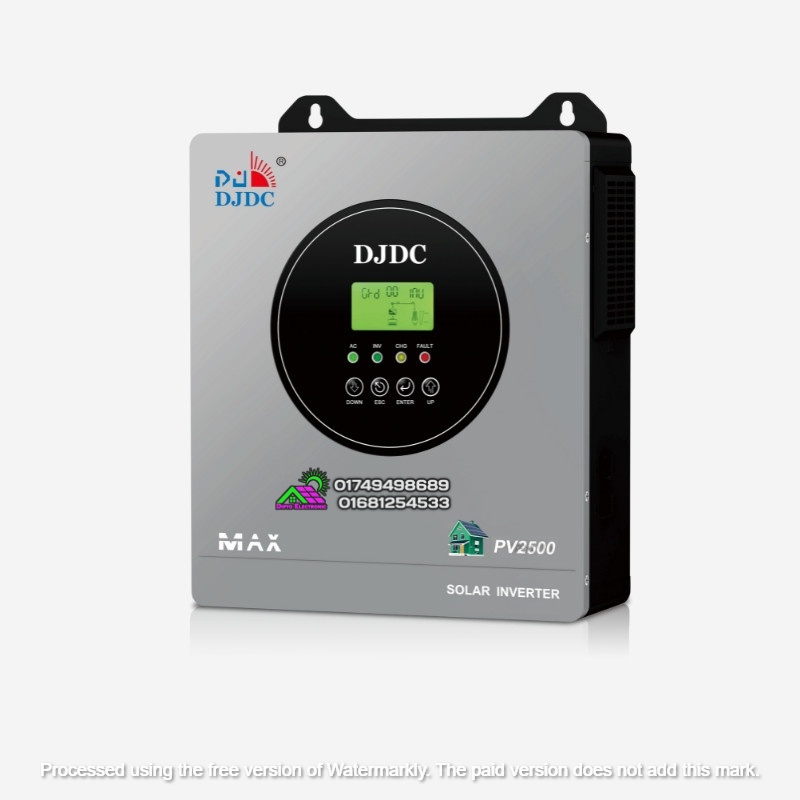

| Model | PV2500 (MAX1800 Series) |
| Technology | High-frequency hybrid solar inverter |
| Output Type | Pure Sine Wave |
| Display | Smart LCD with multi-function keys |
| Communication | WiFi + RS485 + Lithium BMS support |
| Solar (PV) Input | |
| MPPT Type | High-efficiency MPPT |
| PV Voltage Range | 24V Model: 40–145V DC 48V Model: 80–145V DC |
| Max PV Charging Efficiency | ≥ 98% |
| Max Solar Charging Current | 60A (model dependent) |
| Battery Specifications | |
| Battery Type Support | LiFePO4 Lithium Battery AGM / GEL / Lead-acid Battery |
| Battery-less Operation | Supported |
| Bidirectional Charging | Solar + Grid both can charge battery |
| BMS Communication | Built-in Lithium BMS protocol |
| AC Output | |
| Rated Power | 1800W |
| Output Voltage | 220V AC ± 5% |
| Output Frequency | 50Hz |
| Waveform | Pure Sine Wave |
| Overload Protection | Yes |
| AC Input (Grid) | |
| Input Voltage Range | 145–270V AC |
| Grid Charging Current | 10A / 20A / 30A (selectable) |
| AC Priority / Solar Priority | Configurable |
| Working Modes | |
| Modes | Grid Mode Solar Mode Hybrid Mode UPS Mode Battery-less Mode |
| Protection Features | |
| Protections | Overload protection Short-circuit protection PV reverse polarity protection Battery reverse protection High-temperature shutdown Advanced dust-proof design |
| Environmental | |
| Operating Temperature | -10°C to 50°C |
| Cooling Method | Intelligent fan cooling |
| Noise Level | < 55dB |
| Physical | |
| Design | Wall-mount |
| Size & Weight | Model-based (can be added if needed) |
