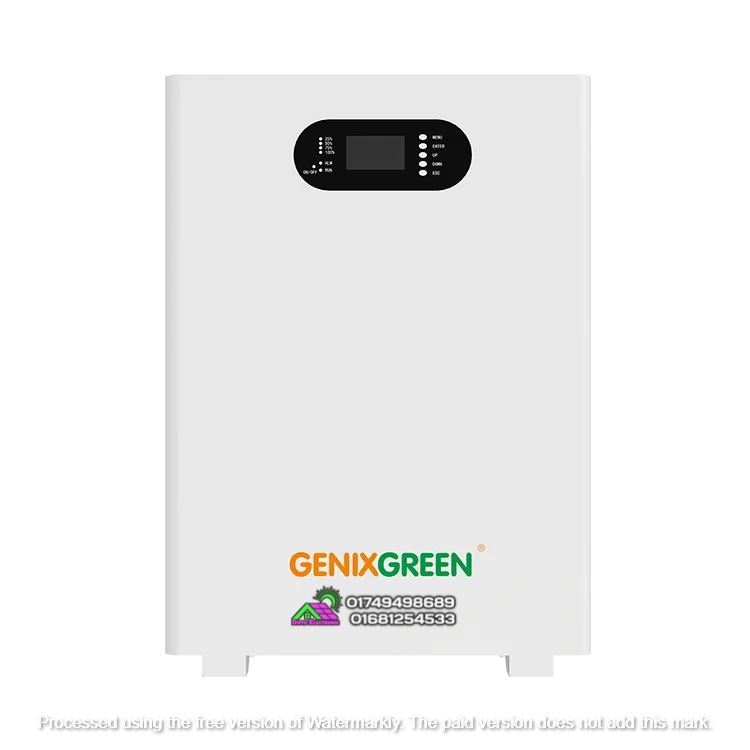

✅ Brand: GENIXGREEN
✅ Model: ES-BOX12 (LCD)
✅ 5.12kWh energy storage for backup solar systems
✅ Supports up to 15 batteries in parallel mode
✅ Built-in LCD display for real-time monitoring
✅ 6000+ cycles at 80% depth of discharge level
✅ 5-year warranty (terms & conditions apply)
Warranty : Available (As per T&S)
Original price was: 110,000.00৳ .98,000.00৳ Current price is: 98,000.00৳ .
| Parameter | Value |
|---|---|
| Product Model | ES-BOX12 (LCD) |
| Nominal Energy | 5.12kWh |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah (EVE) |
| Cell Type | LFP |
| Standard Charge Voltage | 56.8V |
| Max Discharge Current | 100A |
| Discharge Cut-Off Voltage | 44.8V |
| Parallels Function | Support 15 Units In Parallels |
| Communication Interface | RS485, RS232, CAN (Optional) |
| Cycle Life | ≥6000 Cycles (80% DOD) |
| Charge Temperature Range | 0~65°C |
| Discharge Temperature Range | -20~65°C |
| Certification | TUV IEC62619 / EMC / CE / MSDS / UN38.3 / UL |
| Dimensions | 480 × 600 × 150 mm |
| Weight | 50kg |
| Installation Method | Wall Mounted / Floor Standing |
| Warranty | 5 Years (Under Warranty Terms) |
