Warranty : Available (As per T&S)
Original price was: 16,500.00৳ .15,730.00৳ Current price is: 15,730.00৳ .

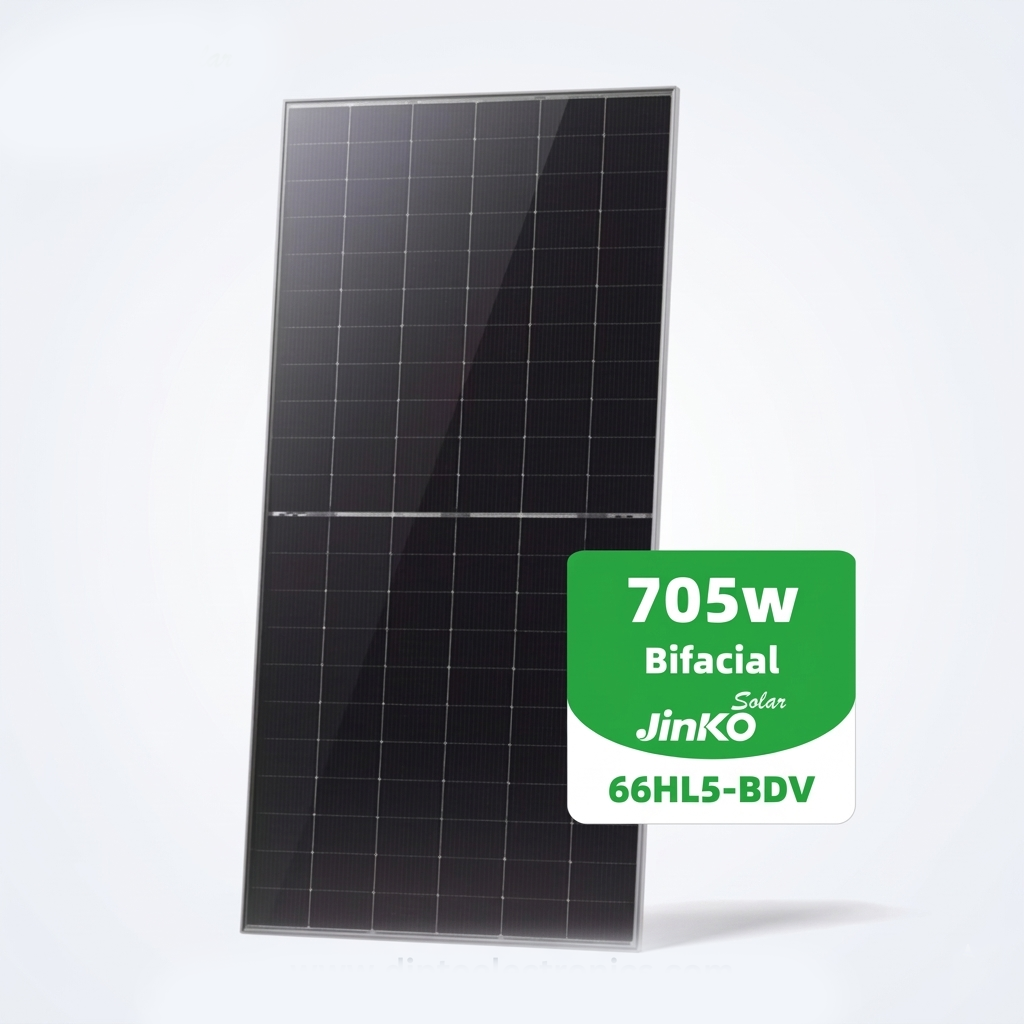

Jinko TiGER Neo BIFACIAL MODULE WITH DUAL GLASS JKM700-720N-66HL5-BDV | ||||
Specifications(STC) | ||||
Maximum Power-Pmax [Wp] | 700 | 705 | 710 | 715 |
Maximum Power Voltage-Vmp [V] | 40.42 | 40.53 | 40.65 | 40.77 |
Maximum Power Current-Imp [A] | 17.32 | 17.40 | 17.47 | 17.54 |
Open-circuit Voltage-Voc [M | 48.40 | 48.56 | 48.73 | 48.88 |
Short-circuit Current-Isc [A] | 18.40 | 18.46 | 18.53 | 18.60 |
ModuleEfficiency STC [%] | 22.54 | 22.70 | 22.86 | 23.02 |
Power Tolerance | 0~+3% | |||
Temperature Coefficients of Pmax | -0.29 %/C | |||
Temperature Coefficients of Voc | -0.25 %/C | |||
TemperatureCoefficients of lsc | 0.045%/℃ | |||
STC:Irradiance 1000W/m²,Cell Temperature25℃,AM =1.5 | ||||
Specifications(BNPI) | ||||
Maximum Power-Pmax [Wp] | 773 | 779 | 784 | 790 |
Maximum Power Voltage-Vmp [V] | 40.41 | 40.55 | 40.66 | 40.80 |
Maximum Power Current-Imp [A] | 19.13 | 19.21 | 19.28 | 19.36 |
Open-circuit Voltage-Voc [M | 48.47 | 48.59 | 48.72 | 48.85 |
Short-circuit Current-Isc [A] | 20.33 | 20.40 | 20.48 | 20.55 |
BNPI:Iradiance:front 1000W/m²,rear 135W/m²,Cell Temperature 25℃,AM=1.5 | ||||
Application Conditions | ||||
Operating lemperature | 40℃~+70℃ | |||
Maximum System Voltage | 1500 VDC(IEC) | |||
Maximum Series Fuse Rating | 35A | |||
Bifaciality Coefficent | φVoc:98±5%,φlsc:80±5%,φPmax:80±5% | |||
